Data Hazards

1Learning Outcomes¶

• Given instruction sequences and a processor architecture, identify potential control hazards.

• Explain why a write-then-read register file reduces pipeline stalls due to potential data hazards.

• Explain how forwarding (i.e., bypassing) reduces pipeline stalls due to potential data hazards.

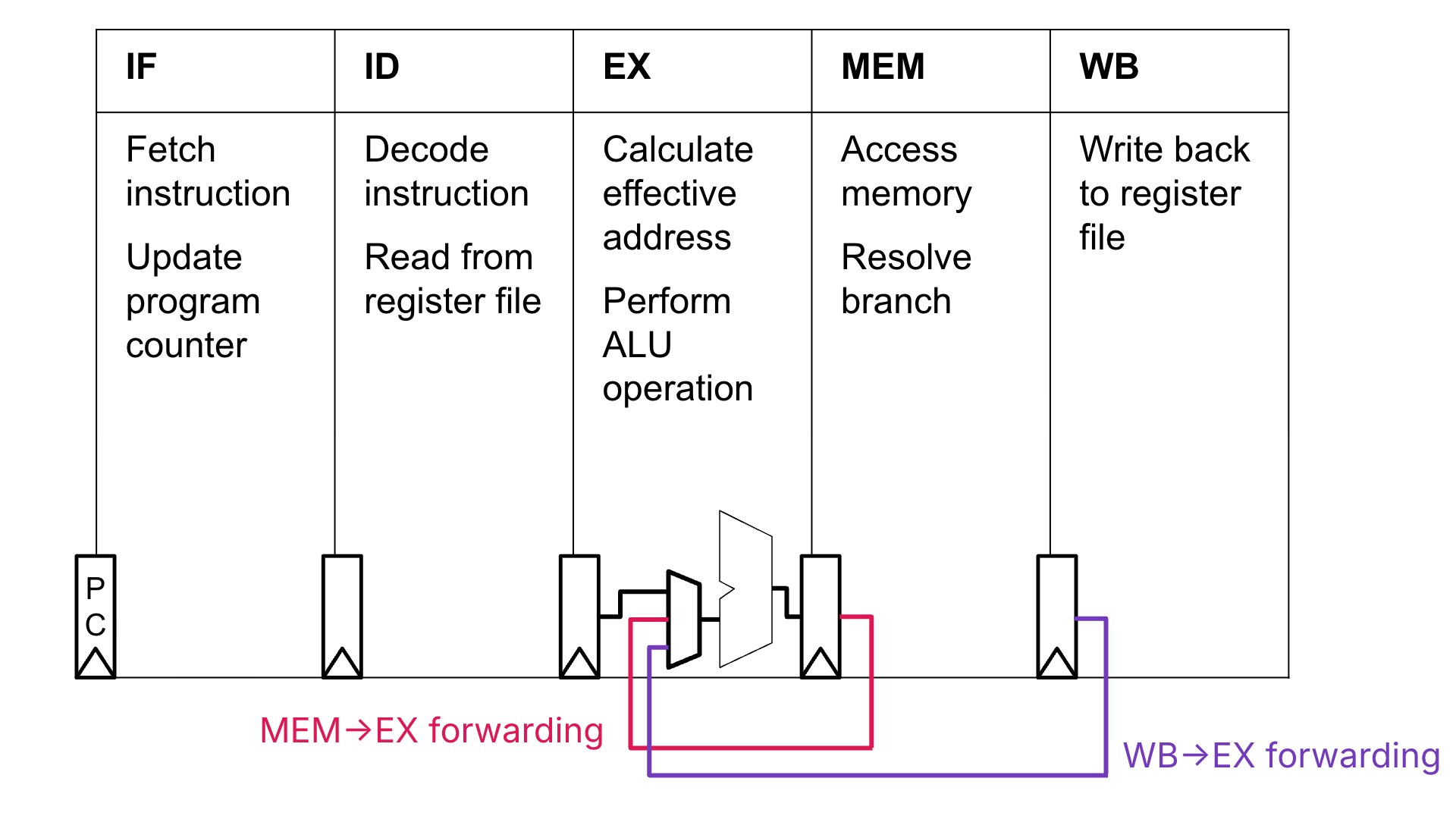

• Implement two forwarding paths, one from MEM to EX and one from WB to EX, in the five-stage pipelined processor.

• Explain why data hazards involving load instructions in a given instruction sequence can incur an inevitable pipeline stall.

From earlier:

Data hazard: Instructions have data dependencies, and some instructions must wait for previous instructions to complete—otherwise outdated values would be used in computation.

Data hazards occur because instructions read from and write to the same registers and memory. From P&H 4.6:

Suppose you found a sock at the folding station for which no match existed. One possible strategy is to run down to your room and search through your clothes bureau to see if you can find the match. Obviously, while you ar edoing the search, loads that have completed drying are ready to fold and those that have finished are ready to dry.

In this section, we discuss how the five-stage pipelined processor can be modified to mitigate performance hits due to data hazards.

Consider the following waterfall diagram in Table 1. The add and sub instructions have a data hazard because the former writes to and the latter reads from register s0.

The sub instruction must read the updated value of s0 after the add instruction completes. In cycle 5, the add instruction writes to register s0. However, in cycle 3, sub reads from register s0, which gets the stale value of s0, before add has updated it. Then sub performs the incorrect subtraction of this stale value before writing the incorrect result.

2Stalling¶

To resolve the data hazard in Table 1, we can stall the pipeline until resources are “ready,” i.e., add has written the correct value to register s0. Pipeline stalls, or bubbles, are effectively “no-ops” (nops) where affected pipelines do nothing.

The below diagram illustrates a three-stall solution. In Table 2, sub will most certainly read the correctly updated value of register s0 by the end of cycle 6.

Because performance suffers with stalling, we will discuss ways to avoid stalling where possible (though it is always a good last resort).

2.1Implementing Stalls¶

The details in this subsection are out of scope. For more information, read P&H 4.8.

Implementing stalls in hardware requires control and extra pipeline state to prevent unintended state changes in stalled stages, e.g. writes to the program counter, register, or memory.

One approach described in P&H 4.8 is a hazard detection unit. For data hazards, this detection unit can be implemented in the ID stage to determine if the source registers of this instruction depend on the destination register of register(s) still in the pipeline.^[1] To stall an instruction, we could deassert all control signals (by setting them to 0^[2]) so that when the instruction passes through later stages, the stages effectively do nothing.^[3]

We illustrate this in Table 2, where in cycle 2, the hazard detection unit detects that the instruction in the ID stage, sub, has a source register that depends on the add instruction. The hazard detection unit then bubbles nops through the pipeline and preserves the sub instruction until it can be safely completed.^[4]

3RegFile: Write-Then-Read¶

Consider the waterfall diagram in Table 3. Does the dependency between add and sw incur a data hazard?

What is happening in cycle 5? If we are assuming our original RegFile design, then the add instruction in the WB stage only sets up the MUX, so that the write to t0 occurs at the next rising clock, edge, or cycle 6. This would mean that in the same cycle 5, the sw instruction in the ID stage would indeed read a stale value, causing a data hazard.^[5]

The RISC-V five-stage pipeline therefore “ups” the hardware requirement on the register file. We leverage the high speed of the register file (100 ps for each of read/write) to assume that the hardware unit supports write-then-read:

• WB stage instruction updates value in first half of cycle, e.g., on falling edge.

• ID stage reads new value.

If we assume our RegFile supports write-then-read, then in cycle 5, the read of the sw instruction in the ID stage delivers what is written by the add instruction in the WB stage, so there is no data hazard.

4Forwarding¶

So far, we have discussed some solutions to some hazards by (1) specifying appropriate hardware requirements, and, if all else fails, (2) stalling the pipeline until there are no hazards.

However, we observe that with data hazards, we don’t need to wait for the instruction to complete before trying to resolve the data hazard. In other words, the data in question is ready much earlier than the WB stage of the earlier instruction.

Consider the example in Table 5, which has two data hazards because the sub and or instructions depend on the result of the add instruction writing to register s0.

The result of adding t0 and t1 is ready at the beginning of cycle 4, once the add instruction completes the EX stage in cycle 3. So we could add extra hardware to supply this sum as the input for the sub instruction and the or instruction.

Wiring more connections in the datapath to use results when computed is a process known as forwarding or bypassing.^[6] Instead of waiting for the value to be written into the RegFile, we can instead grab the operand directly from the next pipeline stage.

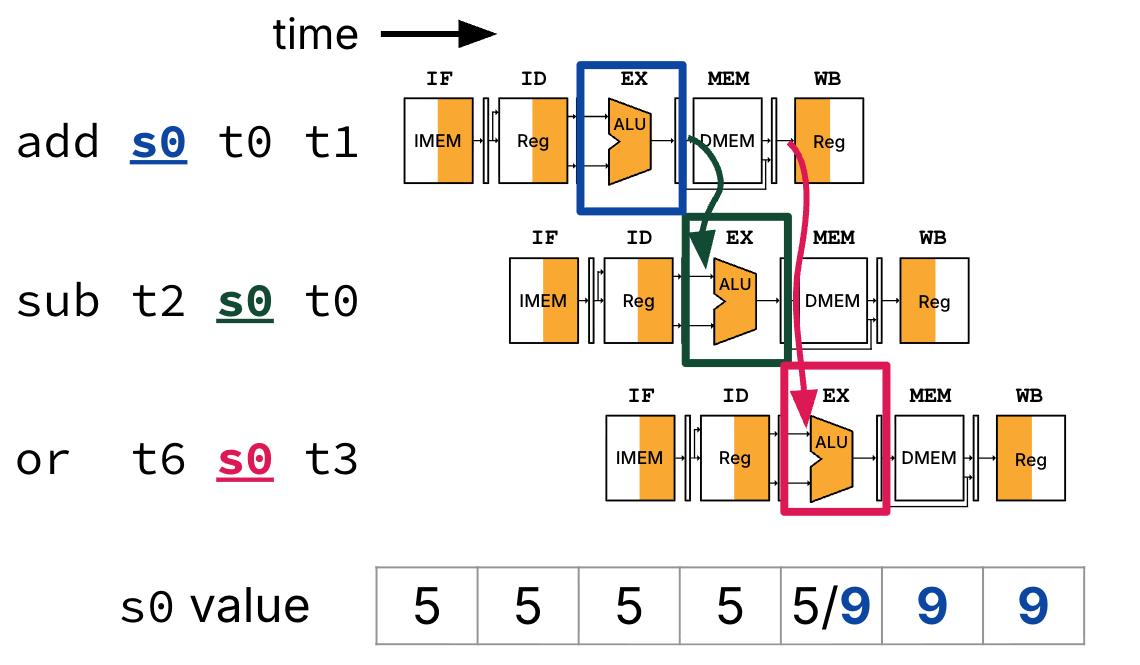

We use Figure 3 to describe at a high-level what data is forwarded.

Notes:

• At the beginning of cycle 4, the ALU result from the add instruction is forwarded from its EX/MEM pipeline register directly to the ALU (for the sub instruction’s EX stage).

• At the beginning of cycle 5, the ALU result from the add instruction is forwarded from its MEM/WB pipeline register directly to the ALU (for the or instruction’s EX stage).

• The value of register s0 is still updated in cycle 5, from the stale value 5 to the new value 9. The ID stages of the sub and or instructions still read the stale value of register s0 in cycles 2 and 3, respectively. What matters is that the correct operands are fed into ALU during the EX stage for both of these instructions.

• Note that with hardware forwarding, we do not need to update the waterfall diagram in Table 5 because no stalls occur.

4.1Implementing Forwarding¶

Forwarding is implemented by adding bypass wires between pipeline registers and other components, inserting muxes, and including additional control logic.

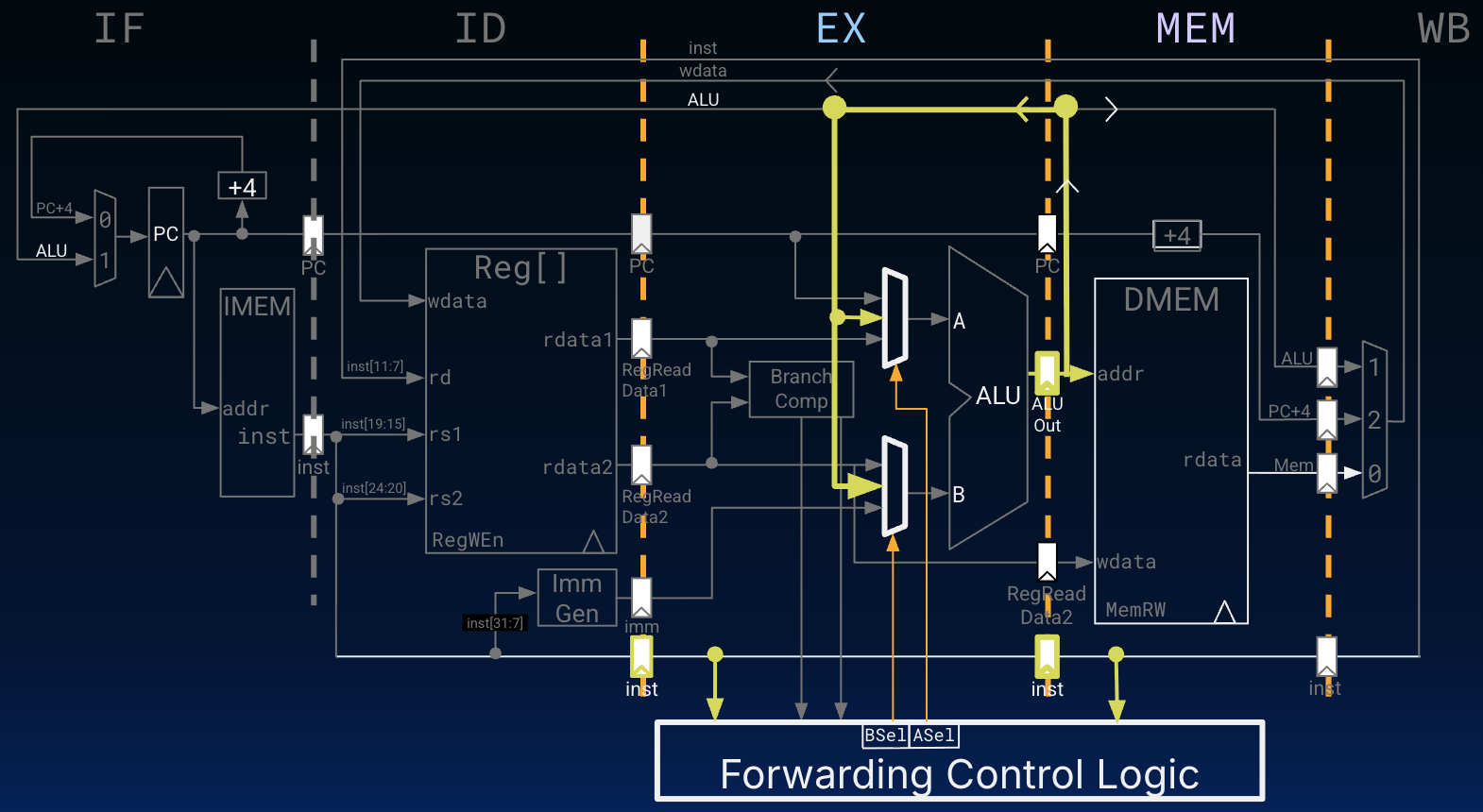

Figure 6 shows an implementation of the MEM to EX forwarding path. The forwarding path (e.g., bypass) connects the output of the ALU from the EX/MEM pipeline register to the ALU input muxes. These two muxes are now wider to account for the additional bypass option. The control signals ASel and BSel now must also use the instruction bits to determine if the bypass should be used for either input to the ALU.

We omit the full MEM/WB forwarding circuitry, leaving this for you to work out.

The lw-or data hazard in option B is not resolved by the proposed forwarding logic. Cycle 5 is the or instruction’s EX stage. However, the lw instruction does not finish reading the value from DMEM (to be loaded into register s1) until the end of cycle 5. The result of this memory read is not available in the MEM/WB pipeline registers until cycle 6.

5Load Data Hazards¶

The lw-or data hazard described above is an example of a load-use data hazard. The hazard stems from an instruction’s EX stage depending on a memory read from an immediately preceding load instruction’s MEM stage in the same clock cycle.

5.1Approach 1: Stall¶

Consider the instruction sequence in the previous Quick Check. As shown in Table 7, the pipeline must stall for one cycle to avoid the lw-or data hazard.

5.2Approach 2: Code scheduling¶

Consider the instruction sequence in the previous Quick Check. We observe that if the or and sll instructions were switched, we could avoid the inevitable stall due to the potential lw-or data hazard.

From P&H 4.8:

Although the compiler generally relies upon the hardware to resolve hazards and thereby ensure correct execution, the compiler must understand the pipeline to achieve the best performance. Otherwise, unexpected stalls will reduce the performance of the compiled code.

In other words, if the compiler knows how the processor resolves data hazards, it can design instruction sequences to avoid unavoidable stalls, e.g., due to loads. This approach is called code scheduling. With knowledge of the underlying processor architecture, the compiler reorders code to improve performance.

Consider the below C code.

A[3] = A[0] + A[1];
A[4] = A[0] + A[2];

Suppose that the address of array int A[] is in register a0 and the 0th to 4th elements of A are in t0 through t4, respectively.

A simple compilation would result in inevitable stalls due to instructions in the load delay slots needing the load results. If the pipeline implements WB to EX forwarding, stalling incurs two additional cycles, as below.

lw  t0 0(a0)
lw  t1 4(a0)
add t2 t0 t1    # stalled one cycle
sw  t2 12(a0)
lw  t3 8(a0)    # stalled one cycle
add t4 t0 t3
sw  t4 16(a0)

A compiler could use code scheduling by inserting instructions into the load delay slots that are unrelated to the load results. With forwarding, the new seven-instruction sequence below does not incur any performance loss due to stalling.

lw  t0 0(a0)
lw  t1 4(a0)
lw  t3 8(a0)
add t2 t0 t1
sw  t2 12(a0)
add t4 t0 t3
sw  t4 16(a0)

6Summary: Detecting Data Hazards and Implementing Forwarding¶

Again, data hazards occur between different stages, when an instruction reads a register before a previous instruction has finished writing to the same register.

Suppose we have the rs1, rs2, RegWEn, and rd signals for two instructions (instruction n and instruction n + 1) and we wish to determine if a data hazard exists between the instructions. We can check to see if register rd for instruction n matches either register rs1 or rs2 of instruction n + 1, indicating a data hazard.

We could then use our hazard detection to determine which forwarding paths/number of stalls (if any) are necessary to take to ensure proper instruction execution. In pseudocode, part of this could look something like the following:

if (rs1(n + 1) == rd(n) && RegWen(n) == 1) {
    set ASel for (n + 1) to forward ALU output from n
}
if (rs2(n + 1) == rd(n) && RegWen(n) == 1) {
    set BSel for (n + 1) to forward ALU output from n
}

Read P&H 4.8 for more information.
